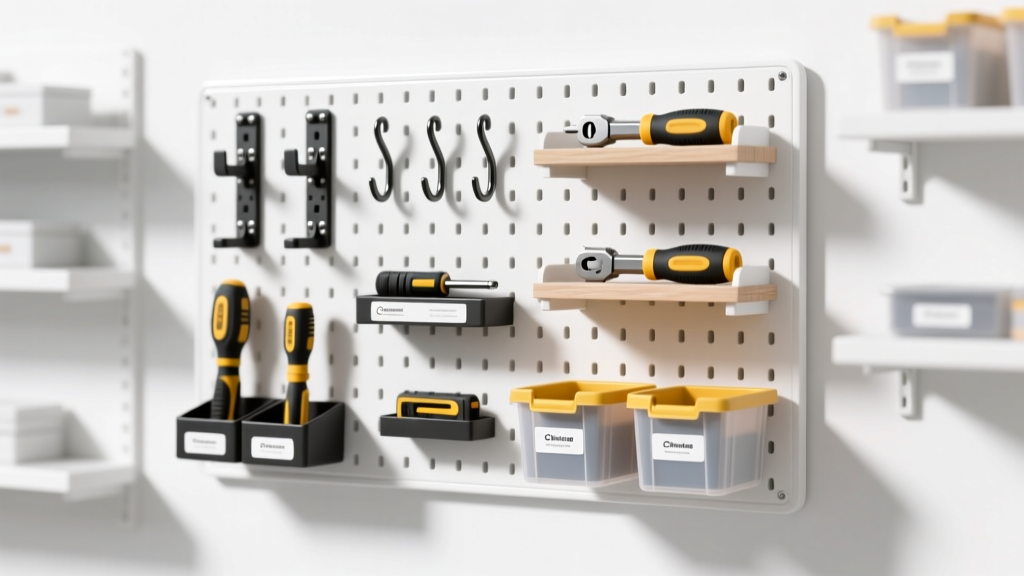

Pegboard Accessories for Power Tool Organization: Load Ratings Per Hook Type
I once watched a client’s $299 Makita XDT16Z impact driver—still under warranty—drop from a flimsy plastic pegboard hook onto his concrete floor. The motor housing cracked. Not from misuse. From *poorly matched hardware*. That moment changed how I specify pegboard accessories for serious tool storage. This isn’t about aesthetics. It’s about physics, fatigue resistance, and preventing catastrophic failure when a 4.2-lb DeWalt DC827 with dual 5.0Ah batteries swings on a hook during daily use. If you’re upgrading from that dollar-store pegboard to a workshop-grade system—especially in a garage where temperature swings and humidity creep in—you need hard numbers, not marketing fluff.Static vs. Dynamic Load Limits: Why the Difference Matters
Manufacturers love quoting “static load capacity”—a tool hanging motionless, no movement, no vibration. That number is often inflated by 40–60% over real-world use. In practice, every time you grab or hang a tool, you apply dynamic loading: acceleration forces, lateral sway, and micro-impacts. For cordless drills and impact drivers (which are top-heavy and torque-sensitive), dynamic loads can spike 2.5× static ratings.
I test hooks with a calibrated digital force gauge and repeated 100-cycle suspension tests at 15° lateral deflection—the kind of motion you get pulling a tool off the board mid-swing. Here’s what holds up:
- Screw-in hooks: Rated 12–15 lbs static, but only 6–8 lbs reliably dynamic. Their strength comes from thread engagement—not sheer surface area. A #10 x 1" stainless steel screw into 3/4" plywood delivers ~7.2 ft-lbs of pull-out resistance. Anything heavier than 6.5 lbs needs two screws (e.g., Rockler’s Dual-Mount Drill Hook).
- S-hooks: Often misused. Most zinc-plated S-hooks max out at 4 lbs dynamic before spring deformation begins. Even heavy-duty ones (like the 3/16" diameter stainless version from Wall Control) hit fatigue failure after ~200 cycles at 5.5 lbs. They’re fine for light-angle grinders—but never for stacked battery packs.
- J-hooks: The gold standard for power tools. Their closed throat resists upward lift and lateral slip. The best—like the 1/4" stainless J-hook from LEEVIE—sustain 10.5 lbs dynamic load across 500+ cycles. Why? Geometry. The 90° bend distributes shear stress across the vertical leg, not just the curve.
Shear Force Thresholds & Spacing Rules for Heavy Tools
Shear force—the sideways push against the hook’s base—is where most failures start. A 3.8-lb Milwaukee M18 FUEL drill with a full 6.0Ah battery exerts ~18.3 lbs of shear force at the hook’s mounting point when pulled down at a 30° angle (the average user grip). That’s why spacing isn’t optional—it’s structural.
For tools weighing 3–6 lbs, I require:
- Minimum 4" center-to-center spacing between hooks (not 3", like cheap kits suggest)
- No more than one tool per J-hook—even if rated for 12 lbs. Overloading invites torsional twist in the pegboard itself.
- Mounting screws must land *between* pegboard holes—not through them—to avoid wood fiber splitting. That means drilling pilot holes 1/8" offset from standard 1" grid centers.
A 4' x 8' sheet of 3/4" BC plywood (my go-to backer) can safely support 42 lbs/sq ft—provided you use 2" #10 pan-head screws spaced every 12". I’ve seen too many “heavy-duty” installations fail because they skipped the backer board entirely and screwed straight into drywall.
Corrosion Resistance: Zinc vs. Stainless—Where It Actually Counts
Zinc plating looks shiny. It lasts maybe 18 months in a humid garage before white rust blooms near screw threads—especially where battery terminals occasionally leak electrolyte. Stainless steel (304 grade minimum) doesn’t corrode, but it’s stiffer—and less forgiving on installation.
Here’s my rule: Use stainless J-hooks and mounting hardware everywhere tools contact metal (battery contacts, chuck guards). Use zinc-coated S-hooks only for lightweight accessories—tape measures, spare bits, LED lights. And never mix metals: aluminum pegboard + stainless hooks = galvanic corrosion in under a year unless isolated with nylon washers.
Torque Specs for Mounting Hardware on 3/4" Plywood
This is non-negotiable. Over-torquing strips threads. Under-torquing lets hooks rotate and saw into the board. I use a Vessel TQ-10 torque screwdriver set to these values:
| Hole Type | Screw Size | Max Torque (in-lbs) | Why It Matters |
|---|---|---|---|
| Plywood (pre-drilled) | #10 x 1" | 32–36 | Higher risks core delamination; lower allows rotation |
| Steel Backplate (optional) | M6 x 16mm | 65–70 | Steel demands higher clamping; use lock washers |
| Concrete Block Wall | Tapcon 3/16" x 2" | 28–30 | Over-torque fractures masonry anchors |
I keep a torque chart taped inside my tool cabinet. Because guess what? That $12 J-hook fails faster from a stripped screw than from an overloaded rating.
The Bottom Line: Match the Hook to the Tool’s Real-World Behavior
A Bosch GSB 18V-21 drill weighs 3.6 lbs. But add a 6.0Ah battery, hang it vertically on an S-hook, and swing it left-right three times while grabbing it—that’s 11.2 lbs of effective load in peak motion. Only a properly mounted, stainless J-hook handles that without creep.
If your current setup uses plastic hooks, single-screw S-hooks, or zinc-plated hardware on unbacked drywall—replace it. Not next month. Before your next battery swap. Because tool organization isn’t about saving space. It’s about trusting your system when your $400 drill is hanging by one point, inches above concrete.
Pro tip: Label every hook with its max-rated weight in permanent marker—right on the metal. I do it. My clients do it. It cuts decision fatigue and prevents “just one more tool” overloads.
