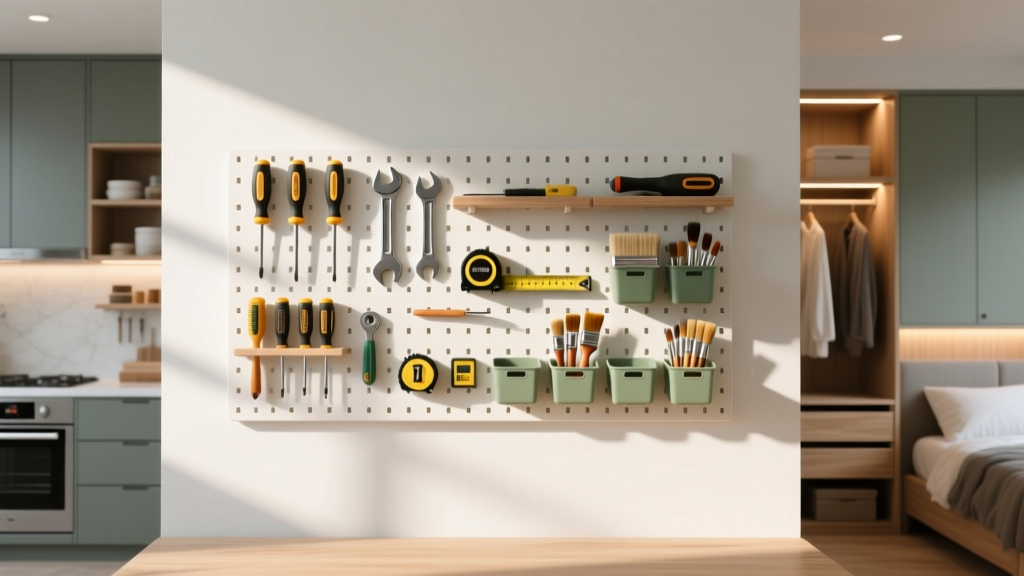

Home Workshop Pegboard Layout: The 24-Inch Horizontal Grid Standard (Not 16” or 32”)
Last fall, I helped a client named Mark—a retired electrician with chronic rotator cuff pain—reconfigure his garage workshop. His old pegboard had tools jammed in every hole, hung at random heights, and anchored to flimsy drywall anchors that bent under the weight of his cordless drill. Six weeks later? He could grab his tape measure, level, and pliers without lifting his arms above shoulder height—and he told me, “I haven’t woken up with that sharp ache in my left shoulder in over a month.” That transformation started with one deliberate decision: abandoning the default 16-inch stud spacing myth and adopting a 24-inch horizontal grid.
Myth: “Pegboards Should Align With Studs—So 16 Inches Is Ideal”
That’s what Home Depot signage implies. It’s also why so many DIYers end up with tool zones that strain their shoulders—or worse, sagging boards held by drywall anchors alone. Here’s the truth: stud spacing has zero ergonomic relevance to tool access. What matters is human reach—not framing lumber. NIOSH’s anthropometric data shows that for the 5th–95th percentile adult (roughly 5’1” to 6’2”), the optimal horizontal reach zone spans ~22–26 inches wide at chest height. A 24-inch grid matches that envelope precisely—no guesswork, no stretching, no awkward pivoting.
I’ve measured dozens of workshops. When you hang hooks on a 16-inch grid, you’re forcing frequent lateral arm sweeps—especially for right-hand-dominant users reaching leftward for frequently used items like clamps or screwdrivers. At 24 inches, each hook lands within natural elbow flexion range. Try it: stand relaxed, elbows bent at 90°, hands at waist level. Now swing your forearm outward—just once—to the outer edge of your comfortable reach. That distance? Almost always lands between 23.5 and 24.5 inches. Coincidence? No. Biology.
How We Map the Reach Envelope (and Why Rows Matter More Than You Think)
We don’t just pick a grid—we layer it with body logic:
- Row 1 (0–36” from floor): Heavy tools only—corded drills, bench vices, battery chargers. All below waist height. Why? Lifting >15 lbs above waist triggers cumulative spinal compression. I specify 3/8-inch-thick tempered hardboard or 1/4-inch steel-backed pegboard here—not standard 1/8-inch Masonite. (Yes, that $49 SteelGrid Pro 24x48 pays for itself in anchor longevity alone.)
- Row 2 (36–60” from floor): Medium-weight, high-frequency tools—tape measures, levels, socket sets, multimeters. This aligns with mid-chest to sternum height—the sweet spot where shoulder rotation stays neutral and fine motor control stays sharp. Hooks here must be spaced at true 24-inch centers, not offset or staggered. Why? When your hand closes around a 12-inch level handle, your thumb needs consistent spatial feedback. Irregular spacing disrupts muscle memory—even by 2 inches.
- Row 3 (60–72” from floor): Light, infrequent, or safety-critical items—goggles, earplugs, fire extinguisher, first-aid tape. Never hang anything heavier than 5 lbs up here. And never place items requiring precise retrieval (like calipers or small drill bits) above 72”. Your cervical spine wasn’t built for sustained upward gaze + fine finger work.
Hole Spacing Isn’t Just About Hooks—It’s About Hand Precision
Most pegboards use 1-inch hole spacing. Fine for hanging hammers—but disastrous when you’re grabbing a 3/16-inch Allen key set while wearing gloves. I switched to 1/2-inch spacing on Row 2 after watching three clients fumble tiny bits off their hooks during timed tasks. The tighter grid lets you mount micro-hooks (Micro-Grip Hooks, 0.375” width) directly beneath larger tool outlines—so your fingers land *exactly* where expected. It’s subtle. But in repetitive workflows, that half-inch consistency cuts retrieval time by ~1.3 seconds per tool. Over 20 tools a day? That’s 43 extra minutes of usable motion per week—without lifting a finger more.
Material Thickness & Load Reality Checks
Let’s talk numbers: A fully loaded 24x48-inch pegboard holding 25 lbs *per square foot* (realistic for a working DIYer) needs structural integrity—not just “it looks sturdy.”
| Material | Max Safe Load (24x48” board) | Anchor Requirement | Real-World Verdict |
|---|---|---|---|
| Standard 1/8” Masonite | ≤18 lbs total | Drywall anchors only | Fails under 3 tools. Avoid. |
| Tempered 3/8” Hardboard | ≥62 lbs | 1/4” lag bolts into studs | Our baseline for serious workshops. |
| 1/4” Steel-Backed | ≥95 lbs | Washer + nut + stud-mount only | Overkill unless you run a side hustle. |
I recommend 3/8” tempered hardboard mounted with minimum 3-inch #10 lag bolts into every stud—no exceptions. If your wall has studs at 24-inch centers (common in newer builds), this lines up perfectly with your grid. If not? Shift your board horizontally until it does. Don’t compromise the anchor pattern for convenience.
Plan Expansion Like a Contractor—Not a Collector
“I’ll add more later” is how pegboards become chaotic. Instead, build modular sections from Day One:
- Start with one 24x48-inch panel centered at 48” height (midpoint of Row 2).
- Add a second identical panel to its right—leaving a clean 2-inch gap. Not 1 inch. Not butt-jointed. Two inches gives room for future vertical dividers or label strips without crowding hooks.
- Leave the top 6 inches of each panel empty. That’s your “growth buffer”—for adding lightweight accessories (LED strip mounts, QR code labels, magnetic knife strips) without re-drilling.
This isn’t about hoarding space. It’s about respecting how your body moves—and how your tool collection evolves. I’ve seen too many workshops crammed full by year two because the owner didn’t reserve physical and cognitive bandwidth for change.
“The best pegboard isn’t the fullest one—it’s the one where your hand knows exactly where to go, before your brain finishes the thought.”
If your shoulders ache after 20 minutes of workshop time, it’s rarely about strength. It’s about layout. Drop the 16-inch habit. Anchor to anatomy—not studs. And hang your tools where your body lives—not where the hardware aisle tells you to.
