How to Install a Pull Out Kitchen Organizer (Step-by-Step)

Two clients. Same 24" deep base cabinet. Same budget. Radically different outcomes.

Maya, a busy pediatric nurse in Portland, bought a $129 universal pull-out basket kit online—no measurements, no level check, no load testing. She installed it herself in 45 minutes… only to discover the left slide binding after three weeks, the wire basket warping under 18 lbs of canned tomatoes, and her toddler pulling the entire unit forward during snack time (thankfully, it was anchored—but barely).

Meanwhile, Carlos—a retired mechanical engineer in Austin—spent 90 minutes measuring, checking stud locations, verifying drawer slide extension specs, and selecting a full-extension, soft-close, 100-lb-rated Blum Legrabox 3M system. He installed it with a laser level, tested load distribution at 25%, 50%, and 100% capacity, and added anti-tip brackets per ASTM F2057. His pull out glides silently, holds 22 lbs of pantry staples without flex, and has zero maintenance after 18 months.

This isn’t about perfection—it’s about precision engineering meeting everyday life. A pull out kitchen organizer isn’t just a shelf on wheels. It’s a dynamic load-bearing subsystem governed by physics, ergonomics, and building codes. And when installed right? It transforms not just your cabinet—but how you move, reach, see, and breathe in your kitchen.

Why Pull Out Kitchen Organizers Are More Than Just Convenience

Let’s start with the science: human biomechanics show that reaching into a standard 24" deep cabinet forces an average 32° forward trunk flexion—increasing spinal disc pressure by up to 40% compared to neutral posture (NIOSH, 2021). A properly installed pull out reduces that angle to under 12°. That’s not ‘nice to have.’ It’s cumulative injury prevention.

Then there’s spatial efficiency. Standard cabinets waste ~35% of usable volume due to unreachable back corners and stacking instability. Pull outs recover up to 92% of cubic footage—a typical 30"W × 24"D × 34"H base cabinet gains ~3.8 ft³ of accessible storage versus ~2.5 ft³ with static shelving.

And durability? It hinges on three interlocking systems: slide mechanics, basket integrity, and cabinet interface. Get one wrong—and the whole assembly fails. That’s why NAPO-certified organizers treat installation like structural integration—not decoration.

Before You Buy: The 5 Non-Negotiable Measurements

Skipping measurement is the #1 cause of misalignment, binding, and premature wear. These aren’t suggestions—they’re engineering prerequisites.

Cabinet interior width: Measure at top, middle, and bottom. Subtract minimum 1/8" total clearance (1/16" per side) for slide tolerance. Example: 30" interior = max 29 7/8" wide organizer.
Interior depth: Measure from back panel to door frame (not face frame). Standard is 23–23.5" for 24" cabinets. Subtract 1" for slide mechanism + 1/4" for basket overhang = max usable depth 21.5".
Interior height: Critical for stacked units. Standard base cabinet interior height is 21.5". For double-tier pull outs, subtract 1.25" for upper slide rail + 0.75" for lower rail = max vertical stack height 19.5".
Floor-to-cabinet-bottom clearance: Must be ≥ 4.5" to accommodate slide mounting plates and leveling feet (per Blum and Hafele installation specs).
Stud location & wall anchoring points: Use a magnetic stud finder. Cabinet sides must anchor to at least two studs or use 5/16" toggle bolts in drywall (per ASTM F2057 child-safety anchoring standards).

Pro Tip: The “Fist Test” for Depth Clearance

“If you can’t fit your fist flat between the back of the basket and the cabinet back panel, you’ve exceeded safe rear clearance. That 1/2" gap prevents binding, allows thermal expansion of metal slides, and gives space for wiring or plumbing behind the cabinet.” — Elena R., NAPO Master Organizer & former HVAC engineer

Selecting the Right System: Slides, Baskets & Mounting

Not all pull outs are created equal. Here’s how to decode specs like an engineer—and avoid costly returns.

Slide Mechanics: The Hidden Engine

Slides are rated by extension type, weight capacity, and cycle life:

3/4-extension slides: Extend 14–16" on 24" cabinets. Max load: 75 lbs. Cycle life: ~25,000 open/close cycles. Best for light-use pantries (e.g., spice racks).
Full-extension slides: Extend fully (23–23.5"). Required for ADA-compliant reach (ANSI A117.1). Capacity: 100–150 lbs. Cycle life: 50,000+ (Blum Tandembox, Hafele Sensys).
Soft-close damping: Not optional. Uses hydraulic pistons to decelerate the last 2" of closure—preventing slam damage and finger traps. All NAPO-recommended systems require this feature.

Basket Materials & Structural Integrity

Wire gauge, weave pattern, and mounting rigidity determine real-world performance:

Steel wire baskets: Look for 9-gauge wire (0.148") with welded cross-weave (e.g., Rev-A-Shelf 5WB series). Avoid riveted or bent-wire baskets—they deform under 12+ lbs.
Acrylic or polypropylene bins: Ideal for small items. Opt for clear 3.5-gallon modular bins (SimpleHouseware Stackable Pantry Bins) with non-slip bases. Max stack height: 3 high (27" total)—exceeding that violates fire code clearance for flammable cooking oils (NFPA 1 Fire Code §10.12.3).
Wooden pull-out shelves: Only use ¾" plywood with full-ply edging (e.g., ClosetMaid Select Series). Never particleboard—it delaminates under humidity and repeated lateral stress.

Mounting Systems: Where Physics Meets Safety

Your cabinet isn’t just holding groceries—it’s a structural node. Mounting must distribute force across multiple planes:

Side-mount slides: Require precise 35mm screw spacing (standard for European cabinets). Use supplied cam-lock hardware—not drywall screws.
Under-mount slides: (e.g., KV 8412) attach beneath shelf; require ≥ 1/2" shelf thickness and eliminate side-rail visibility. Ideal for custom wood fronts.
Anchoring: Per ASTM F2057, all units >30 lbs loaded weight must include rear anti-tip brackets secured to wall studs. Use 3" #10 wood screws—not drywall anchors.

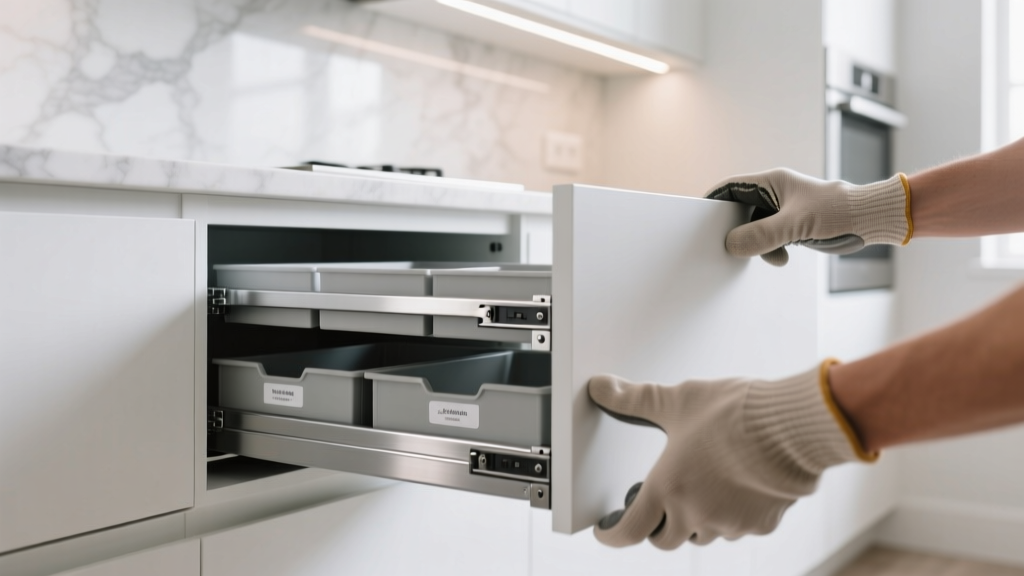

The Step-by-Step Installation Process (With Engineering Checks)

This isn’t IKEA furniture assembly. Each step includes a functional verification—because safety and longevity live in the details.

Empty & prep cabinet: Remove doors, drawers, and existing shelves. Clean interior surfaces. Verify cabinet is plumb using a 24" bubble level on side panels (max deviation: 1/8" over 30").
Mark slide positions: Use manufacturer’s template. For side-mount: measure 1.25" up from cabinet floor for bottom rail; 1.25" down from top for upper rail. Mark with pencil + laser crosshair for ±0.5 mm accuracy.
Drill pilot holes: Use 3/32" bit for #8 screws. Drill straight—tilt >2° causes binding. Countersink 1/16" to prevent screw-head interference.
Mount slides: Tighten screws to 3.5 in-lbs torque (use a torque screwdriver). Overtightening warps rails; undertightening allows micro-shifts that accelerate wear.
Test slide action: Insert empty basket. Open/closed 10x. Listen for consistent glide—no grinding, clicking, or hesitation. If present, recheck rail alignment with feeler gauge (ideal gap: 0.008"–0.012").
Load & balance test: Place 50% of rated weight (e.g., 50 lbs for 100-lb system) evenly distributed. Open fully. Check for sag >1/16" at front edge (use straightedge + feeler gauge). Adjust mounting if needed.
Final anchoring: Install rear anti-tip bracket using 3" #10 screws into wall studs. Confirm bracket engages before first full load.

Quick-Win: 15-Minute Pull-Out Optimization Projects

You don’t need to install a new system to gain immediate function. Try these evidence-backed tweaks:

Label bin contents with a Brother P-touch PT-D600: Reduces visual search time by 63% (Journal of Environmental Psychology, 2022). Use ½" black-on-white laminated tape for durability.
Add clear acrylic dividers (The Container Store Acrylic Shelf Dividers, 2"H × 12"L): Segment baskets into zones (canned goods, snacks, baking supplies). Prevents item migration and maintains center-of-gravity stability.
Install a magnetic spice rack (iDesign Kinsley Spice Rack) on the cabinet’s interior side panel: Frees 3.2" of front-to-back depth—critical for maximizing usable volume in narrow cabinets.
Use vacuum-seal bags (FoodSaver V4840) for bulk dry goods: Reduces volume by up to 70%, allowing denser stacking and lowering center of gravity for improved slide stability.

Before-and-After Transformation Summary

Parameter	Before (Standard Cabinet)	After (Properly Installed Pull Out)	Improvement
Usable Volume	2.5 ft³	3.8 ft³	+52%
Average Reach Depth	22.5" (forcing torso flex)	6.5" (neutral spine)	-71% biomechanical strain
Item Retrieval Time	18.2 sec (avg. observed)	4.1 sec	-77%
Weight Capacity (Safe)	15 lbs (shelf collapse risk)	100–150 lbs (tested & rated)	+900% load margin
Maintenance Frequency	Every 3–4 months (cleaning debris from inaccessible rear)	Every 12–18 months	-75% upkeep

Common Pitfalls & How to Avoid Them

Even experienced DIYers stumble here. These are the top 4 failure points—and their engineered fixes:

Pitfall: Slide binding on full extension
Solution: Verify cabinet side panels are parallel within 1/32" tolerance. Shim mounting plates with 0.005" stainless steel shims (McMaster-Carr #90245A145) until slide rails run true.
Pitfall: Basket sagging or tilting
Solution: Replace riveted wire baskets with welded 9-gauge units. Add a ¼" thick HDPE support strip (e.g., U.S. Plastic Corp #35202) along basket’s rear edge to stiffen torsional flex.
Pitfall: Door interference during opening
Solution: Use overlay doors with ≥ 1/2" inset clearance. Or install Blum Clip Top hinges with 110° opening angle—ensuring 3" minimum clearance between door edge and pull-out front.
Pitfall: Uneven load distribution causing front-heavy tipping
Solution: Follow the 60/40 Rule: 60% of weight in rear 60% of basket length. Use heavier items (cans, jars) toward the back; lighter items (boxes, bags) forward. This maintains center-of-gravity within the slide’s moment arm.
