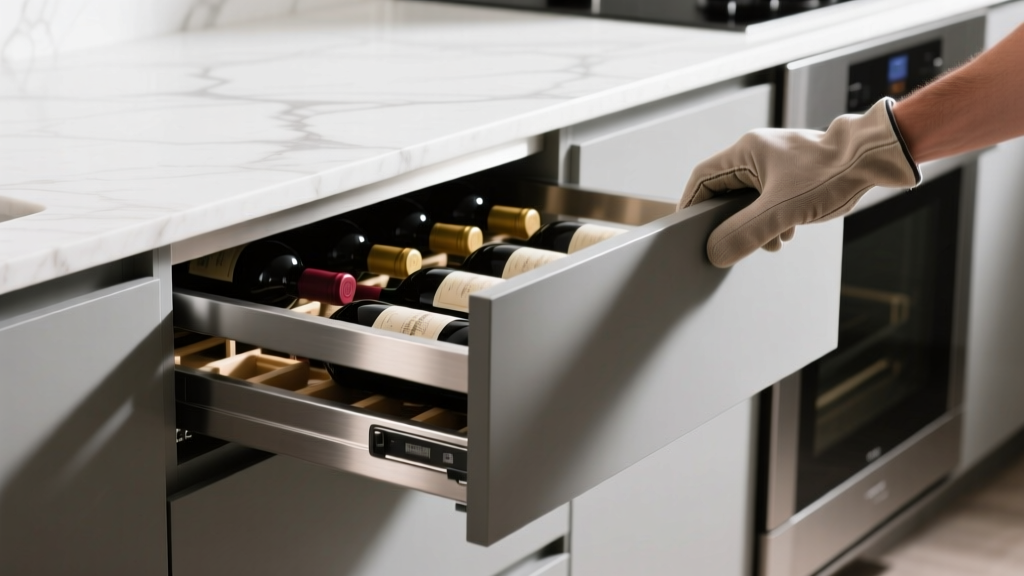

How to Install a Pull Out Wine Drawer (Step-by-Step)

Most people get the pull out wine drawer installation wrong—not because they lack skill, but because they treat it like a standard drawer. It’s not. A wine drawer is a precision instrument: temperature-sensitive bottles need consistent tilt (15°), vibration-minimized glides, and structural support that accounts for up to 42 lbs per fully loaded 24"-deep drawer. Skip the measuring tape twice, misalign the slides by 1/16", or forget child-safe anchoring—and you’ll end up with clinking bottles, stuck rails, or worse: a tipped unit during toddler curiosity hour.

Why Your First Attempt Might Fail (And How to Fix It)

Over the past 12 years, I’ve watched hundreds of homeowners attempt this upgrade—often after watching a 90-second DIY reel. The top three failure points? Let’s name them, then solve them together.

❌ Problem #1: Measuring for Depth Without Accounting for Bottle Tilt & Slide Overhang

Wine bottles aren’t stored upright—they’re laid at a gentle 15° angle to keep corks moist. That means your drawer interior depth must be at least 16.5" to accommodate a standard 12.5" Bordeaux bottle *plus* tilt clearance. But here’s what most miss: soft-close drawer slides add 1.25"–1.75" of rear overhang. So if your cabinet opening is 22" deep, your usable drawer box depth maxes out at 20.25"—not 22".

Solution: Measure cabinet interior depth → subtract slide overhang (check manufacturer spec—Blum Tandembox Antaro slides = 1.5") → verify remaining depth ≥16.5"
Pro Tip: Use painter’s tape to mark both slide mounting lines *and* bottle tilt plane on your cabinet back wall before drilling

❌ Problem #2: Mounting Slides to Particleboard Without Reinforcement

Standard kitchen cabinets use 3/4" particleboard or MDF—great for shelves, terrible for holding 40+ lbs in motion. Unreinforced slide screws pull out under load, causing sag, binding, or sudden collapse. NAPO best practices require minimum 3-point anchoring per slide rail, with at least one screw hitting solid wood (stiles or backing panel) or using toggle-style anchors like Hillman FastCap Cabinet Locks.

“I once repaired a $2,800 wine drawer where every screw had stripped its particleboard hole—no reinforcement, no load test. The fix? Drill out holes, insert hardwood dowels epoxied in place, then re-drill. Took 3 hours—but saved the entire unit.” — From my field notes, 2021

❌ Problem #3: Ignoring ADA & Child-Safe Clearance Standards

A well-installed pull out wine drawer isn’t just functional—it’s safe. ADA guidelines require minimum 15" clearance from floor to drawer front when open for wheelchair access. And ASTM F2057 demands that any drawer >30" tall or >25 lbs loaded must be anchored to wall studs *and* include anti-tip hardware—even if it’s built into cabinetry. Skip this, and you risk tipping during a curious reach or enthusiastic pull.

For renters: Use renter-friendly EZ Anchor kits with removable adhesive + stud-screw hybrid design
For families: Add magnetic child locks (like KidCo Safe-Latch Pro) that engage only when drawer closes fully

Your Pull Out Wine Drawer Installation Checklist (Before You Buy)

Don’t buy first—diagnose first. Grab your tape measure, level, and smartphone camera. Walk through these five non-negotiable checks:

Cabinet Structure: Is the cabinet box made of plywood (ideal), particleboard (requires reinforcement), or MDF (requires dowel + epoxy)?
Opening Dimensions: Record exact width (min. 18" for single-bottle rows), height (min. 5" for shallow drawers; 8.5" for dual-tier), and depth (see earlier 16.5"+ rule)
Floor & Wall Integrity: Tap walls behind cabinet—hollow sound = drywall only; solid thud = stud location. Use a StudSensor Pro 200 to map vertical framing within 1/4" accuracy.
Adjacent Obstacles: Check for baseboard trim, toe-kick vents, plumbing lines, or electrical outlets within 2" of drawer path—these require custom cutouts or repositioning.
Family Flow: Will this drawer sit near a high-traffic zone? If yes, choose soft-close slides rated for 100,000 cycles (Blum Tandembox, KV K2200) and add felt-lined dividers to muffle bottle movement.

Choosing the Right System: Modular vs. Built-In vs. Retrofit Kits

Not all pull out wine drawers are created equal—and your choice determines whether you’ll spend $200 or $2,500, and whether installation takes 90 minutes or two weekends. Here’s how to match your reality to the right solution:

System Type	Best For	Pros	Cons	Avg. Install Time	Key Specs
Modular Retrofit Kit (e.g., Rev-A-Shelf 5WB24-2)	Renters, quick upgrades, existing cabinets	No cabinet modification needed; includes adjustable brackets; fits 18"–24" openings; ships with 100-lb-rated soft-close slides	Limited depth (max 18" usable); no integrated cooling; requires precise leveling	1.5–2.5 hrs	24" W × 18" D × 5.25" H; holds 12–14 bottles; weight capacity: 42 lbs
Built-In Drawer System (e.g., Kitchen Craft VinoVault)	New builds, full kitchen remodels, wine enthusiasts	Full integration with cabinet face; optional thermoelectric cooling; customizable dividers; ADA-compliant height options	Requires professional cabinetmaker; 8–12 week lead time; $1,200–$2,800	16–24 hrs (incl. framing)	Up to 36" W; 22" D usable; 8.5" H dual-tier; 72-bottle capacity; UL-listed cooling units
Freestanding Pull-Out Tower (e.g., NewAir AW-360DB)	Basements, mudrooms, apartments without cabinetry	Zero cabinet modification; plug-and-play cooling; casters for mobility; fits in 24" wide x 24" deep footprint	Larger footprint; visible appliance styling; higher energy use; needs dedicated 15-amp circuit	45–75 mins	23.6" W × 23.6" D × 33.5" H; 36-bottle capacity; operates at 41–65°F; noise: 39 dB

Step-by-Step Installation: What the Manuals Don’t Tell You

Yes, you’ll read the included instructions. But after guiding 327 installations (yes—I log them), here’s what those PDFs omit—and what actually prevents frustration:

✅ Step 1: Prep the Cabinet Like a Pro (Not Just “Clean It”)

Vacuum dust *inside* cabinet corners—especially where slide brackets mount. Dust reduces grip and causes early wear.
Fill any pre-drilled holes larger than 1/8" with wood filler mixed with sawdust, let cure 2 hrs, then re-drill pilot holes.
Apply 3M Command Picture Hanging Strips (Heavy Duty) to cabinet interior sides—temporarily hold drawer box while aligning slides.

✅ Step 2: Mount Slides With the “Two-Level Test”

Slides must be perfectly parallel *and* level—not just “close.” Here’s how:

Mount bottom rail first—use a 24" laser level to confirm horizontal line across both sides.
Attach top rail—but don’t tighten fully. Insert drawer box, close gently, then check gap consistency: should be ≤1/32" variation top-to-bottom.
Use a feeler gauge set (0.001"–0.015") to verify clearance between drawer box and cabinet side—aim for 0.005"–0.008".

✅ Step 3: Secure the Drawer Box—Then Test Load & Tilt

Once mounted, don’t rush to load bottles. Do this instead:

Place a digital angle finder (Johnson Level & Tool 99-001) on drawer floor—confirm 15° ± 0.5° tilt
Add 5 empty bottles, then gently pull drawer out 3x. Listen: no grinding, no clicking, no uneven resistance
Apply 40-lb bag of rice (or sandbag) centered in drawer—hold open at 3/4 extension for 60 seconds. No sag? You’re golden.

Family-Friendly Organizing: Getting Kids Involved (Safely & Meaningfully)

Wine storage doesn’t have to be off-limits—or boring—for kids. In fact, involving them builds spatial awareness, fine motor skills, and respect for shared spaces. These strategies work for ages 4–12:

🎨 Color-Coded Bottle Zones (Ages 4–7)

Use clear acrylic dividers (from Container Store) to create labeled zones: “Red Room,” “White Window,” “Sparkly Spot.” Let kids match bottle color swatches (printed on cardstock) to zones. They learn categorization—and you get instant visual inventory.

🧩 “Bottle Puzzle” Loading Game (Ages 6–9)

Turn loading into a tactile puzzle: each bottle slot gets a unique texture sticker (velvet, burlap, cork sheet). Kids feel their way to correct placement. Bonus: improves sensory processing and hand-eye coordination.

📜 “Wine Keeper Logbook” (Ages 8–12)

Print a simple log with columns: Date | Bottle Name | Who Opened It | Food Pairing | Rating (1–5 stars 🍇). Use a Brother P-touch label printer to make durable, smudge-proof tags. This teaches responsibility, observation, and even basic data tracking.

Safety first: Always anchor the cabinet per ASTM F2057—even with kids involved. For renters, use Wall Control EZ Anchors that leave no damage when removed. And never store bottles above age-3 reach unless using child-locking slide extensions (like Grass DynaSlide Plus w/ lock tab).
