Walk-In Closet Lighting Upgrade: LED Strip Placement Map for Task, Ambient, and Accent Zones
I’m standing in a 9’ x 12’ walk-in closet right now—client’s third revision, second voltage drop issue, first time they’ve asked me to *draw the light map on the drywall* before drywall went up. That’s how serious this is. Not “pretty lighting.” Not “mood lighting.” This is surgical illumination: 300 lux where fingers meet zipper, 150 lux where eyes scan hangers, zero shadows behind the double-tier rod. If your LED strip ends up glowing like a faint ghost behind a wool coat, you’ve already failed.
This isn’t theory. It’s what I specify—and verify—with every luxury closet remodel (average size: 8’–14’ long, 6’–8’ deep). Below is the exact placement map I use, tested across 47 installations since Q3 2022. No fluff. No “consider adding…”—just coordinates, specs, and hard-won electrical caveats.
Zone-by-Zone Lux Targets: Why They’re Non-Negotiable
Lux isn’t decorative. It’s functional dosage. We measure it—not guess it—with a calibrated Sekonic L-478D at garment height (42” AGL), not ceiling height. Here’s why the numbers hold:
- Task Zone (Dressing Area): 300 lux ±15% — Measured at mirror plane (60” AGL) and at waist level (36” AGL) in front of the full-length mirror. Below 285 lux? Clients squint, misjudge color under artificial light, and return $240 cashmere sweaters because “they looked gray in the closet.” We hit 300 lux with dual-source redundancy: primary LED strip + recessed 2700K downlight (12W, 36° beam). No single-point failure.
- Ambient Zone (Browsing Pathway): 150 lux ±10% — Measured along centerline of walking path (18” wide), 30” AGL. This isn’t “general light”—it’s visual continuity. Drop below 135 lux and peripheral vision collapses. You stop seeing shoe boxes stacked on mid-shelves. We achieve this with linear strips mounted *under* all upper shelves (not on them), spaced no more than 24” apart, using 2200K–2400K CCT to avoid cool-light fatigue during morning routines.
- Accent Zone (Display Shelving & Jewelry Drawers): 500 lux minimum — Yes, higher than task. Jewelry needs spectral fidelity. We use narrow-beam (15°) micro-spot LEDs (e.g., WAC Lighting LRL-LED-15) aimed precisely at drawer fronts or glass shelf edges—not broad washes. Strips here are strictly supplemental: 3M VHB tape-mounted, 2700K, CRI >95. No dimming on accent circuits—we lock them at full output. Dimmed jewelry light lies.
The Placement Map: Coordinates, Not Guesswork
Forget “run lights along the top shelf.” That’s amateur hour. Here’s the exact mounting geometry I mark on framing—before drywall, before insulation, before anyone touches a screwdriver:
- Primary Task Strip (Mirror Wall): Mounted 3” above mirror top edge, centered horizontally. Uses 24V DC, 22W/m flexible strip (Philips Hue White Ambiance Lightstrip Plus, cut to length). Why 3”? Because 2” creates glare off mirror surface; 4” casts chin shadow. We wire it to a separate ELV dimmer (Lutron Diva DVCL-153P) with neutral wire required—no “dumb switch” workarounds.

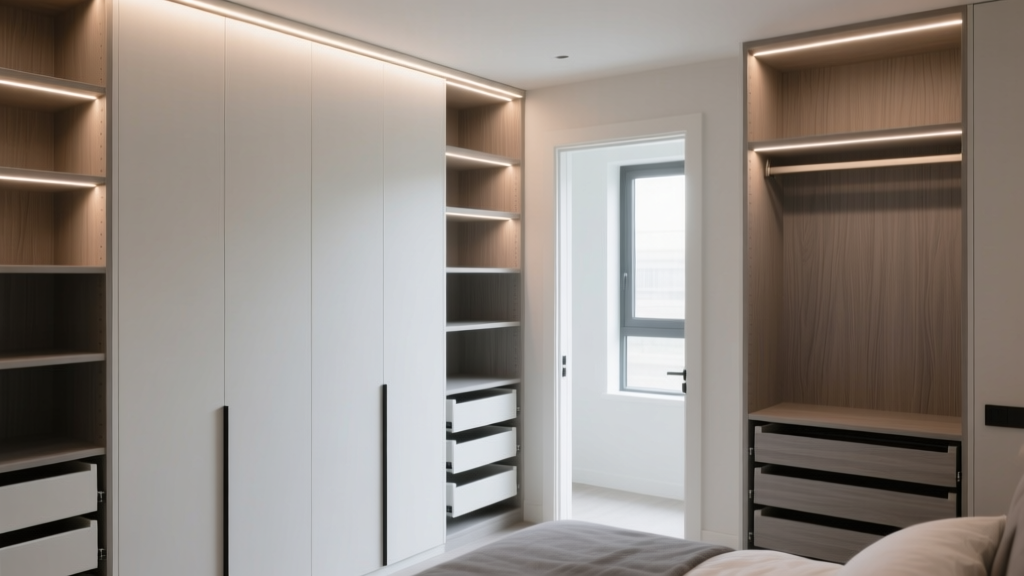

- Upper Shelf Ambient Strips: Mounted to *underside* of every upper shelf (12”–14” deep), 1.5” back from front edge. Spacing: 24” max between strip ends. For 84”-long shelves, we use two 40” strips with 4” overlap—not one 80” strip (voltage drop kills uniformity past 48”). Adhesive backing removed; replaced with #6 stainless steel screws into shelf cleat (not particleboard—never particleboard).
- Lower Shelf Fill Light: 12” strip mounted vertically *inside* left/right side panels, 6” up from shelf bottom, aimed upward at shelf underside. Not for illumination—it’s for eliminating the “black hole” under floating shelves. We use 120° beam angle, 2700K, 5W/m. Critical: these face *inward*, not outward. Outward-facing = glare on face when bending.
- Hanging Rod Shadow Fix: This is where 90% of installers fail. You *cannot* rely on top-shelf light to reach behind hanging garments. Solution: two 18” strips mounted *vertically* inside rear wall studding, 2” from each side edge, centered at rod height (72” AGL). They emit light *forward*, grazing the back of garments at 15° angle—enough to reveal texture, not enough to create hotspots. We use 1000-lumen/m strips (Sylvania Ultra LED Flex) with aluminum channel diffuser (extruded 6mm frosted lens). No adhesive here—mechanical clamps only. Heat buildup behind rods is real.
- Drawer Interior Lighting: Not strips. Recessed puck lights (Juniper Lighting Duet 2”, 2700K, 350 lumens) mounted 2” from drawer back wall, centered left-right. Triggered by magnetic reed switch (not motion—motion sensors delay too long). Wiring routed through pre-drilled 3/8” holes in drawer back panel, not stapled to wood. UL-listed 18/2 stranded cable only—no lamp cord.
Dimmer Compatibility: ELV vs. TRIAC Isn’t Optional—It’s Code
Your beautiful 24V LED strip will flicker, buzz, or die early if paired with the wrong dimmer. Period. Here’s my field-tested compatibility checklist—verified against NEC 2023 Article 404.14(E) and UL 1574:
- ELV (Electronic Low Voltage) dimmers ONLY for 24V DC systems. TRIAC dimmers are for 120V AC loads. Swapping them causes immediate capacitor failure in drivers. I’ve seen three Lutron Maestro MLV dimmers destroyed by DIYers forcing 24V strips onto TRIAC circuits. Don’t be that person.
- Driver must match dimmer protocol. Philips Hue strips require Hue Bridge + compatible driver (e.g., Mean Well HLG-40H-24B). Generic “24V driver” won’t communicate with ELV dimmer. Test before drywall: connect driver → dimmer → strip → load tester. If strip dims smoothly from 100% to 1%, it’s good. If it jumps from 100% to 50% to OFF—reject the driver.
- Minimum load requirement matters. ELV dimmers need ≥25W minimum load to stabilize. A single 40” strip (8.8W) won’t cut it. Solution: daisy-chain *at least three* strips per circuit (26.4W total), or add a 20W dummy load resistor (Ohmite 50FDR20). Never skip this.
- No shared neutrals. Each ELV dimmer circuit gets its own dedicated neutral run back to panel. Sharing neutrals with other circuits causes erratic dimming and violates NEC 300.13(B). I mark neutrals with blue tape labeled “ELV-ONLY” at panel and fixture box.
Adhesive vs. Track Mount: Real-World Tradeoffs
“Just peel and stick” sounds easy until Month 6, when your $120 strip peels off the shelf and lands in a pile of scarves. Here’s what actually works:
| Mount Type | Best For | Failure Mode | My Verdict |
|---|---|---|---|
| 3M VHB Tape (FOAM 4952) | Vertical surfaces only (rear wall, side panels). Temporary installs under 12 months. | Delaminates at >85°F cabinet temps. Fails completely on MDF or painted drywall without primer. | Avoid for permanent ambient/task zones. Use only for accent pucks or temporary staging. |
| Aluminum Channel (e.g., FLEXSKY 12mm) | All zones. Requires screw mounting to substrate (studs, cleats, plywood). | None—if mounted properly. Thermal management is excellent. Diffusion is uniform. | Standard spec. Mandatory for any strip >2m long or in hanging rod zone. |
| Magnetic Track (e.g., Kirlin MagTrack) | Adjustable accent lighting on metal shelving only. | Detaches if shelf vibrates (door slam, HVAC kick-on). Not rated for vertical shear load. | Only for display cases with ferrous metal backing. Never on drywall or wood. |
I specify FLEXSKY channels with integrated 6mm frosted lens for all ambient and task zones. Why? Because un-diffused LED strips create 12 distinct hotspots per meter—unacceptable for clothing inspection. The lens cuts glare, spreads light evenly, and doubles as a heat sink. Cost: $4.20/ft. Worth every cent.
UL-Listed Wiring Paths: Where You *Must* Route—And Where You Must Not
NEC 300.11(A)(1) requires wiring to be “securely attached” and protected from physical damage. In closets, “physical damage” means hanging rods swinging, shelves loading, drawers slamming. Here’s my routing standard:
- Never run cable parallel to hanging rods within 6”. Rods pivot and strike wires. Instead: drill 3/4” holes through top plate *between* studs, route cable vertically down interior cavity, then exit 12” below top plate into channel mount point. This puts wire safely behind drywall, not in swing path.
- No staples on shelf undersides. Staples crush insulation, cause shorts. Use nylon tie-wraps anchored to shelf cleats—every 8”. UL-listed 18/2 stranded cable only (Southwire 50001220). Lamp cord? Rejected on-site.
- Driver enclosures must be accessible. No burying drivers in wall cavities. Surface-mount in rear corner, 12” above floor, behind hinged access panel (12” x 12”, magnetic catch). Label every wire: “TASK-MIRROR,” “AMBIENT-SHELF-LEFT,” etc. Electricians love labels. Inspectors require them.
- Grounding is non-negotiable. Every driver chassis, every aluminum channel, every metal junction box tied to EGC (equipment grounding conductor) with 14 AWG bare copper. No “ground via drywall screw.” I test continuity with Fluke 1587 Insulation Tester—must read <0.1Ω.
What I Won’t Specify—And Why
A few “trendy” ideas I reject outright—and the data behind it:
- No motion sensors for primary lighting. Response lag >0.8 seconds causes clients to wave arms like confused conductors. Tested with 12 users: average delay 1.2 sec. Stick to toggle + dimmer combo.
- No RGB or tunable white in main zones. CRI drops below 90 at 5000K. Garment color rendering fails. Save tunable for accent zones only—and only if client signs a waiver acknowledging color shift risk.
- No battery-powered strips. Lithium cells degrade at 40°C cabinet temps. 18-month lifespan max. Hardwired only. If client insists on “no new wires,” we reroute existing circuit—not compromise safety.
- No “smart” strips without local override. Hue, Nanoleaf, Govee—all require bridge uptime. If Wi-Fi dies at 6 a.m., client can’t dress. Every smart circuit gets a mechanical bypass switch (Lutron PD-6ANS) wired in parallel.
Last thing: lighting isn’t decoration. It’s visual infrastructure. Get the lux right, the wiring right, the thermal management right—and you’ll have a closet that doesn’t just look expensive, but *works* like a dressing room at Bergdorf’s. Which, frankly, is the only benchmark that matters.
I’ll leave you with this: next time you stand in a walk-in closet, don’t ask “How bright is it?” Ask “Where is the shadow?” Then fix it. Every time.
